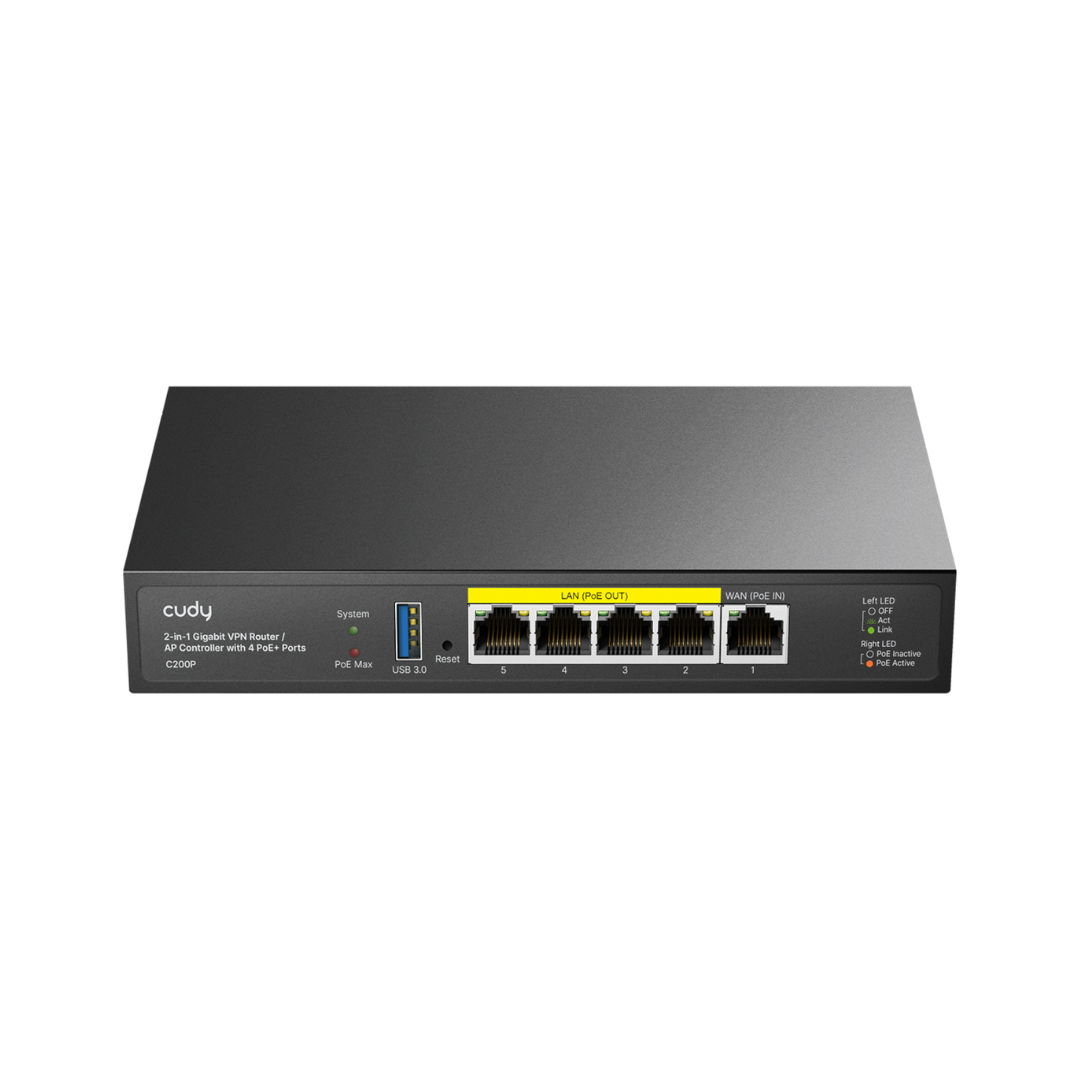

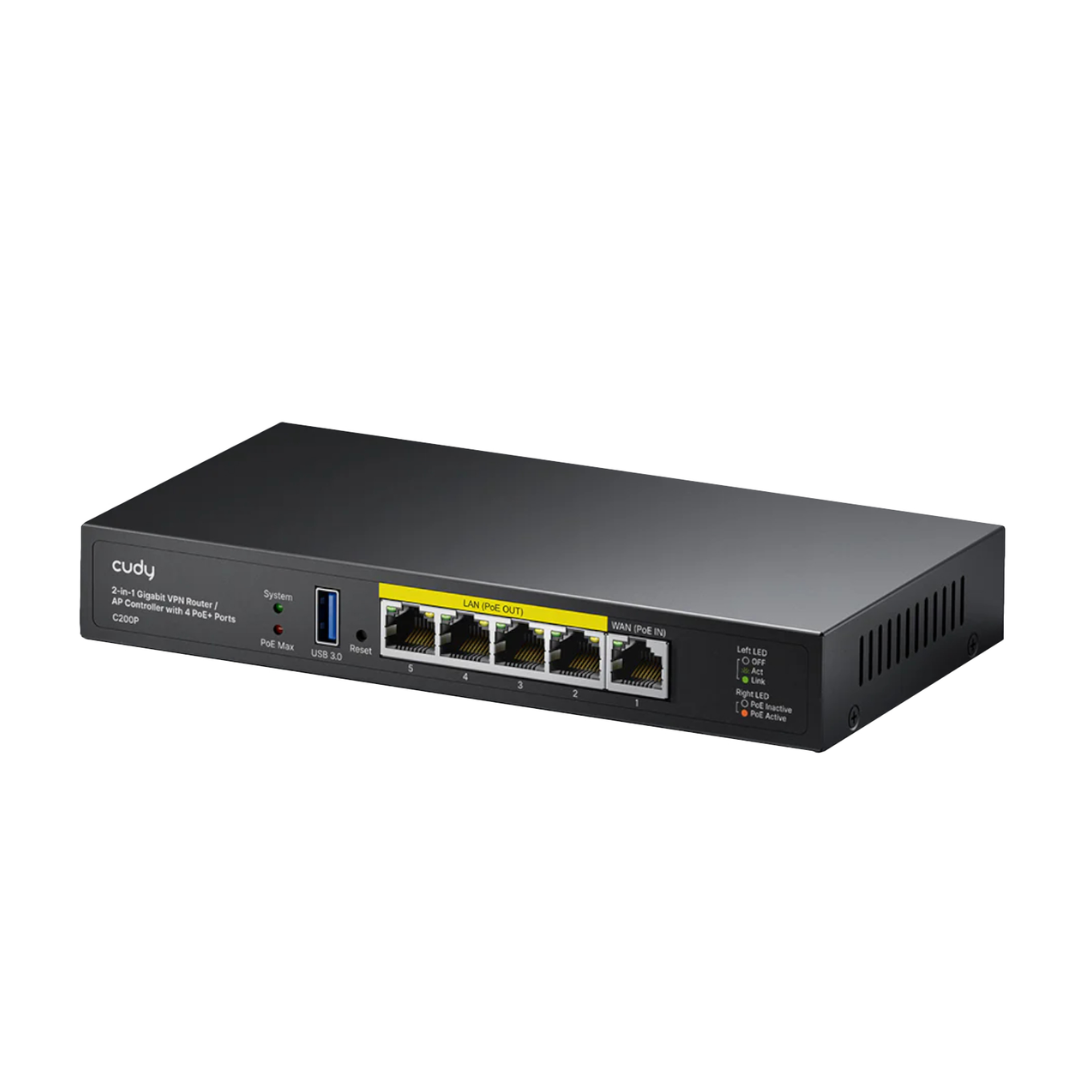

Cudy C200P 2-IN-1 SMB Router / AP Controller

Ships in 5-7 working days

2-in-1 Gigabit VPN Router and AP Controller | 4 × PoE+ Ports with 60W Power Supply | Centralised Cudy AP Management | WireGuard, OpenVPN & IPsec VPN

Quick Specs

• Consolidate your network infrastructure — the C200P serves as both a Gigabit VPN router and a centralised AP controller in a single compact unit.
• Power up to four access points cable-free with four IEEE 802.3at/af PoE+ LAN ports and a 60W total power supply.
• Secure your network with built-in VPN server and client support for WireGuard, OpenVPN, IPsec, ZeroTier, PPTP, and L2TP.
• Manage up to 200 Cudy Access Points from one interface, with multi-SSID, captive portal, and seamless Cudy Mesh support.
• Deploy flexibly — mount on a wall or sit on a desktop thanks to the compact metal chassis measuring just 190 × 100 × 28 mm.

One Device, Two Roles — Router and AP Controller in a Single Box

The Cudy C200P is designed for small and medium-sized businesses that need a clean, manageable network without deploying multiple separate devices. It operates simultaneously as a Gigabit VPN router handling your internet connection and as a centralised controller for your Cudy Access Points, letting you oversee your entire wireless infrastructure from a single unified interface. It can also run exclusively in AP Controller mode if a separate router is already in place, giving you the flexibility to slot it into an existing network without redesigning your topology.

Power Your Access Points Directly — No Extra Switches Required

Tired of hunting for spare power sockets every time you install an access point? The C200P’s four Gigabit LAN ports (ports 2–5) are all PoE+ outputs compliant with IEEE 802.3at/af, delivering up to 30W per port and up to 55W total PoE budget from the built-in 60W power supply. That means you can run up to four Cudy APs — wall-plate, ceiling-mount, outdoor, or desktop form factors — directly from this unit over a single Ethernet cable each, eliminating the need for a separate PoE switch in most small-site deployments.

Serious VPN Capability Baked In

The C200P does not treat VPN as an afterthought. As VPN server it supports WireGuard, OpenVPN, IPsec, ZeroTier, PPTP, and L2TP, and as a VPN client it can tunnel outbound traffic through the same protocol range. WireGuard throughput reaches 213 Mbps upload and 152 Mbps download in server mode, while OpenVPN delivers 22 Mbps in both directions — solid figures for an SMB router at this price point. Maximum concurrent tunnels are 20 for IPSec and 16 each for PPTP/L2TP and OpenVPN, giving you ample headroom for remote staff and branch-to-branch links.

Manage Your Wireless Network from a Single Dashboard

In Main Router and AP Controller mode the C200P can manage up to 10 Cudy APs supporting up to 100 clients; in standalone AP Controller mode that ceiling rises to 200 APs. The management interface covers quick setup, AP management, multi-SSID configuration (up to 4 SSIDs per band), captive portal for guest networks, MAC filtering, IP/MAC binding, Wi-Fi time schedules, and per-device internet and VPN on/off controls. Remote management is available via HTTPS and TR-069/TR-098/TR-111/TR-181, and the dashboard surfaces internet, WAN, LAN, VPN, and DHCP server status at a glance.

Features

• Functions as a Gigabit VPN router, centralised AP controller, or AP controller only — three deployment modes in one unit.
• 4 × Gigabit PoE+ LAN ports (IEEE 802.3at/af, up to 30W per port) for cable-and-power delivery to Cudy Access Points.
• 60W total power supply with 55W PoE budget (50W when a USB device is connected).
• VPN server and client: WireGuard, OpenVPN, IPsec, ZeroTier, PPTP, L2TP — up to 20 concurrent IPSec tunnels.
• Cudy Mesh support for seamless roaming across compatible Cudy APs (wall-plate, ceiling-mount, outdoor, desktop).
• Captive portal and multi-SSID management (up to 4 SSIDs per band) via centralised AP controller interface.
• 1 × USB 3.0 port with Samba server functionality and Wake on LAN support.
• SPI firewall, DoS protection, DNS over TLS (Cloudflare, Google, Quad9, Custom), and comprehensive IPv4/IPv6 support.
• Compact metal chassis with desktop and wall-mount installation options.

Specifications

• Colour: Black
• Device Type: Access Point
• Ethernet Ports: 5
• PoE Powered: true
• Mesh Compatible: true
• Product Dimensions (L x W x H): 19.0 x 10.0 x 2.8
• Warranty: 12

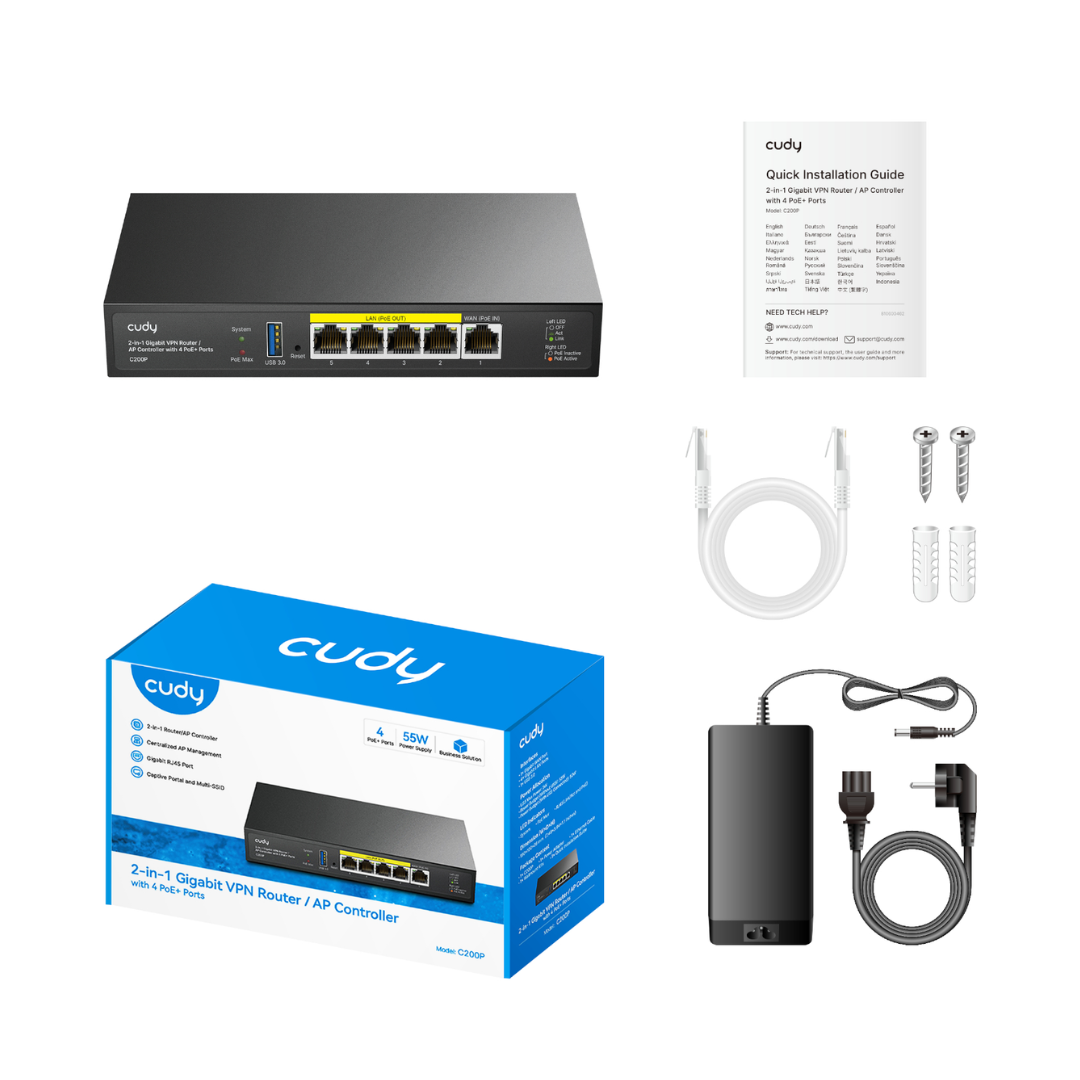

What’s in the Box

• Cudy C200P 2-in-1 Gigabit VPN Router / AP Controller – Black x1
• Power Adapter x1
• Ethernet Cable x1
• Installation Guide x1
• Mounting Kit x1
